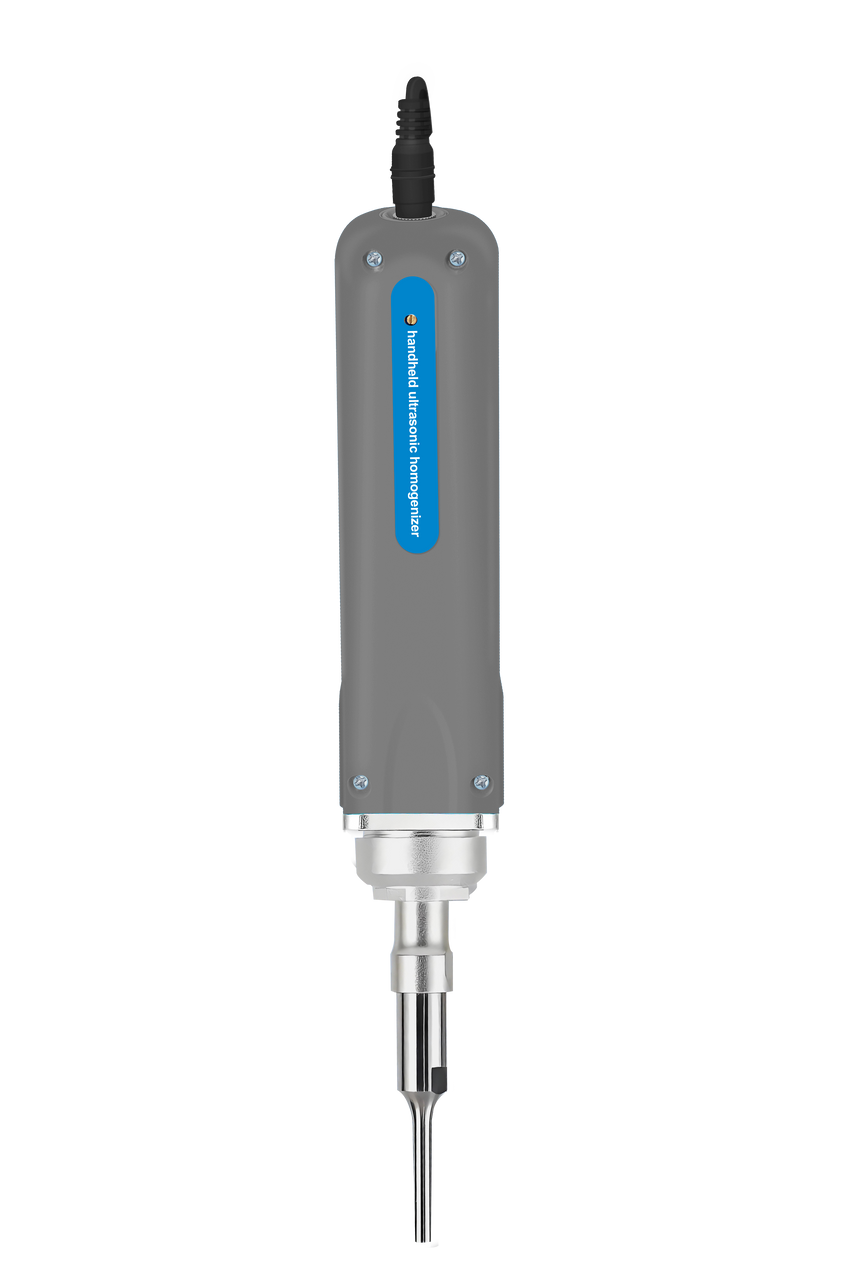

Mini Type Ultrasonic Homogenizer, 300W, 300ml, 6mm Horn
-AZZOTA
Azzota Mini Ultrasonic Homogenizer is a compact, integrated sample pretreatment instrument that utilizes ultrasonic waves to create powerful cavitation effects in liquids. This efficient process makes it ideal for a wide range of laboratory applications, including:
- Nanomaterial dispersion
- Cell disruption and extraction
- Sample pulverization
- Homogenization and mixing
- Chemical synthesis
- Oil–water emulsification
Designed with a space-saving structure, this mini homogenizer delivers reliable performance and versatility for research in life sciences, chemistry, and materials science.
Product Features
- Wide Voltage Compatibility – Designed for broad voltage input, ensuring reliable performance across different regions.
- Outdoor Ready – Can be equipped with a car power cord, making it suitable for field and outdoor applications.
- Compact & Lightweight – Integrated structure design that is space-saving, portable, and easy to operate.
- Versatile Horn Options – Multiple specifications available, with processing capacity up to 300 ml. Titanium alloy horns provide high strength, corrosion resistance, heat resistance, and long service life.
- Advanced Ultrasonic Control – Automatic frequency tracking and amplitude compensation ensure stable operation, high load capacity, and excellent electro-acoustic conversion efficiency.
- Flexible Operation – Can be handheld or mounted on an optional fixed support, making it particularly suitable for sonication of micro and small-volume samples.
Specifications
- Power: 10W to 300W (Manual analogue adjustable)
- Capacity: 0.1ml to 300ml
- Single ultrasound time: <60min (Based on sample temperature)
- Operation mode: Continuously
- Ultrasound frequency: 30 kHz
- Standard horn: Φ6mm
- Available horn: Φ2mm, Φ6mm, Φ8mm
- Horn Material: Ti-6Al-4V Titanium alloy
- Horn length: 80mm
- Voltage: 100-240V/AC 9V-24V/DC 5A
- Protection and the power indicator flash
- Net Weight: 1.2 lbs
- Packing Weight: 4 lbs
- Packing Dimension: 13x11x5 inch
