Azzota® Economic Visible Spectrophotometer, SV1150, 4nm
-AZZOTA

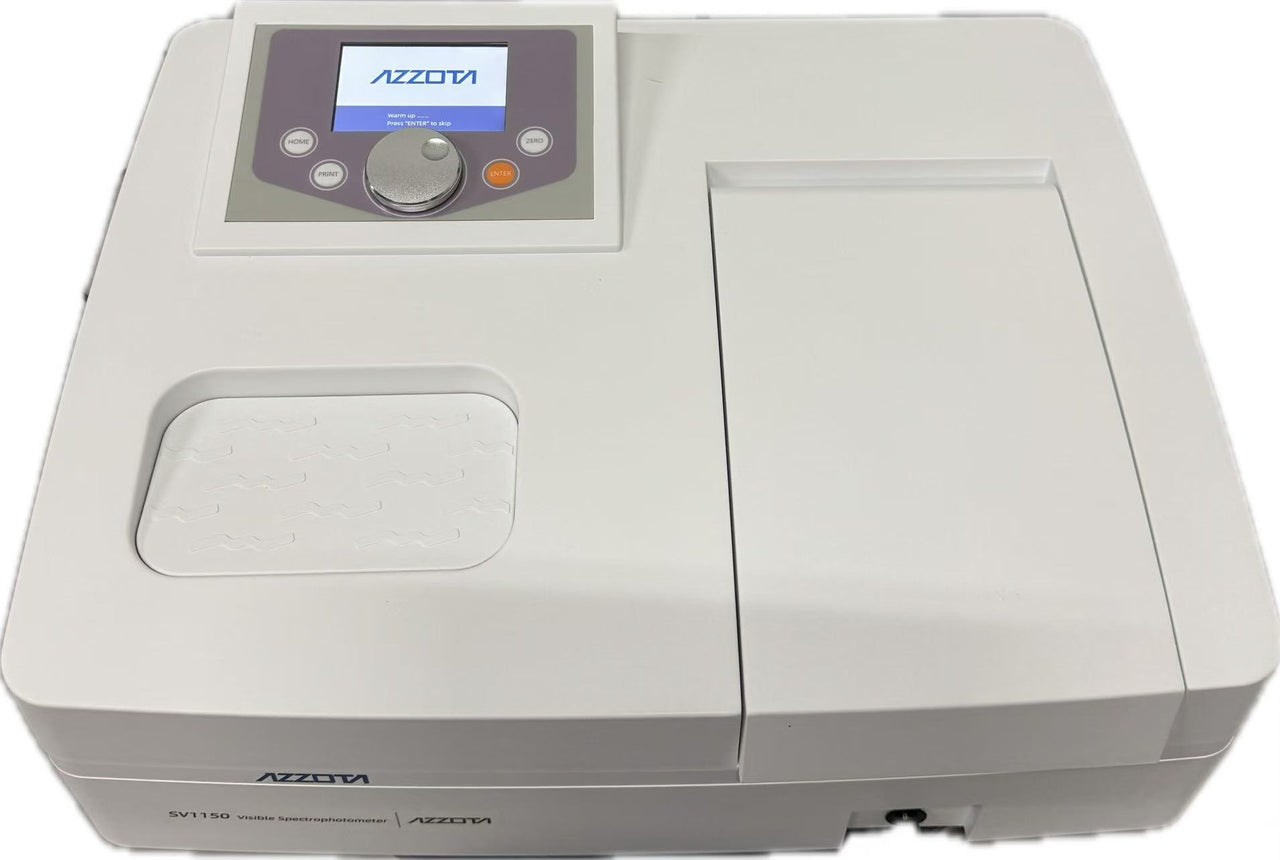

SV1150 Economic Visible Spectrophotometer
- 1200 l/mm grating and 16 bit high resolution A/D converter ensure higher accuracy
- Self-calibration upon start-up
- Automatic wavelength setting, automatic blanking
- High resolution TFT color LCD screen
- Combination of rotary encoder and membrane keyboard, easy to switch modes and set parameters
- Wide sample room, suitable for 5-100 mm sample cell holder and other accessories
- Connect printers to output measurement results directly
Specifications
|
Optical system |
Single Beam |
|
Light source |
Tungsten |
|
Spectral bandwidth |
4 nm |
|
Wavelength range |
325nm - 1050 nm |
|
Detector |
Silicon photodiode |
|
Sample holder |
10 mm 4-cell holder |
|
Display |
3.5 inch TFT LCD (Resolution: 480x320) |
|
Interface |
RS-232 9 Pin serial port for Printer, USB-B Port for PC |
|
Power |
100V-240V AC, 50/60 Hz, 75 VA |
|
Dimensions |
18 x 14 x 8 inch |
|
Weight |
20 lbs |
