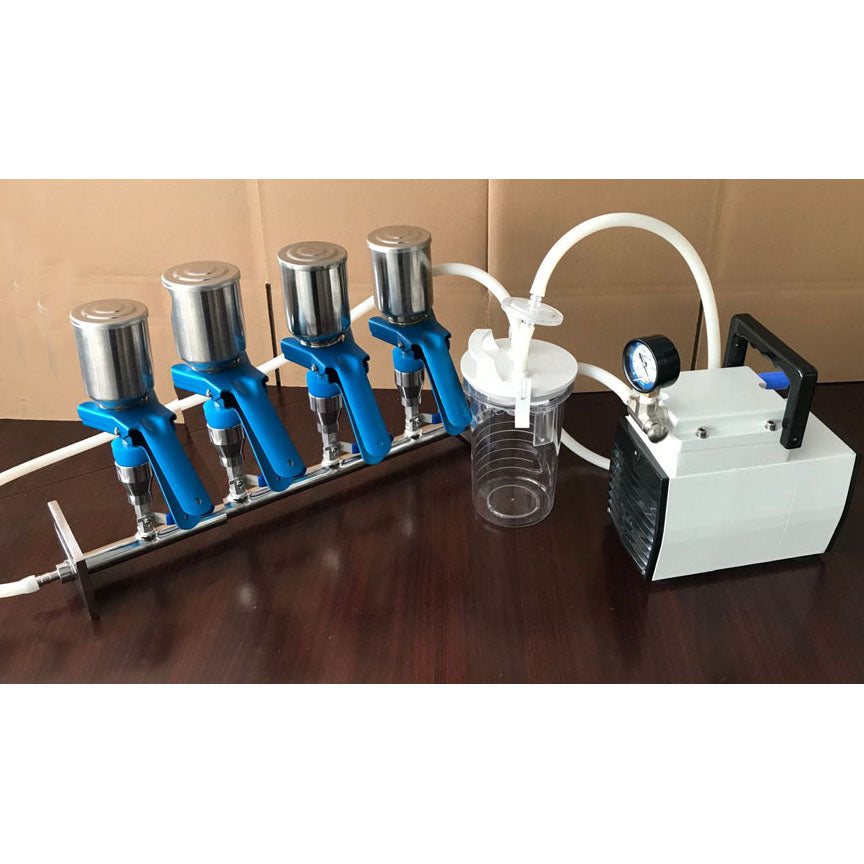

Complete System for Filtration includes:
Filtration System with 4-Branch Manifold
Oil free vacuum pump. 25L/Min
Collection bottle and tubes
Stainless steel manifold for four filtration units is fitted with SUS316 stainless steel units
The apparatus can be autoclaved and sterilized by dry heat at up to 180°C
Tubing nozzle 3/8" (8-9 mm) ID vacuum tubing (inside diameter), one way Valve
Total Length 12 inch (300mm), Distance between stations is 4 inch (105mm), stations height 10.6 inch (270mm)
Uses Microporous Filter Sizes 50mm to 47mm (Sold Separately)
The top flask Diameter 65mm, height 105mm, Volume 300ml
The funnel volume: 300 ml
the collection bottle volume: 1000ml
