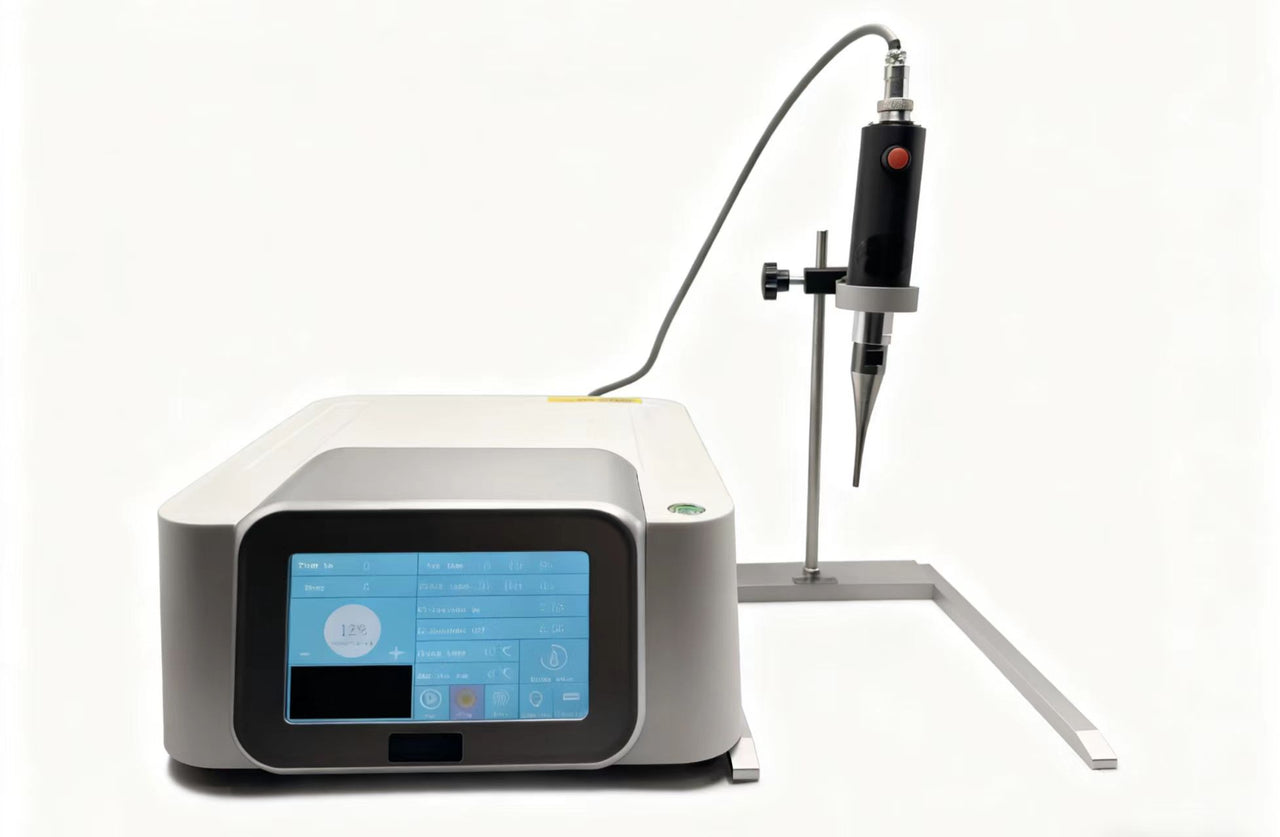

Portable Ultrasonic Homogenizer, 400W, 300ml, 5mm horn
-AZZOTA
Azzota Portable Ultrasonic Homogenizer is a versatile, multi-functional instrument that uses high-intensity ultrasound to generate cavitation effects in liquids for efficient sample processing. It is widely applicable for:
- Cell disruption – Effective for breaking animal cells, plant cells, and viral cells.
- Emulsification, separation, and extraction
- Defoaming and degassing
- Cleaning and acceleration of chemical reactions
Equipped with an LCD screen and offering both automatic and manual (foot switch) operation modes, this homogenizer provides precise control with features such as:
- Adjustable ultrasonic time and stable power output
- Real-time sample temperature detection and display
- Automatic frequency tracking for consistent performance
Compact and user-friendly, it is especially suitable for processing small-volume samples in biological, pharmaceutical, and chemical laboratories.
Product Features
- Integrated Design – The probe and host are combined in a compact structure, offering a small size with large processing capacity. The integrated ultrasonic vibration system ensures high efficiency, energy savings, and portability
- Flexible Operation – Can be used as a handheld device or mounted on a stand, making it especially suitable for processing micro or small-volume samples.
- Durable Titanium Alloy Horn – Built with high-strength titanium alloy, providing excellent sound transmission, corrosion resistance, and heat resistance, thereby extending the instrument’s service life.
Specifications
- Display mode: 7-inch Touch Screen
- Power: 4W to 400W Continuous adjustable
- Crushing Capacity: 0.1ml to 300ml
- Standard horn: Φ5mm
- Optional horn: Φ2mm, Φ3mm, Φ5mm, Φ6mm
- Single ultrasound time: 0.1s to 99.9s
- Single Gap Time: 0.1s to 99.9s
- Total time (ultrasound + gap): 1 to 99h 59m 59s
- Frequency range: 20-30 kHz
- Temperature control range: 0°C to 100°C (Optional low temperature thermostat)
- Alarm Function: Time, overload, no load, over temperature
- Ultrasonic host: ABS one-piece molding
- Power supply: 110V/60Hz or 220V/ 50Hz
- Packing Weight: 28 lbs
- Packing Dimension: 20x16x13 inch
