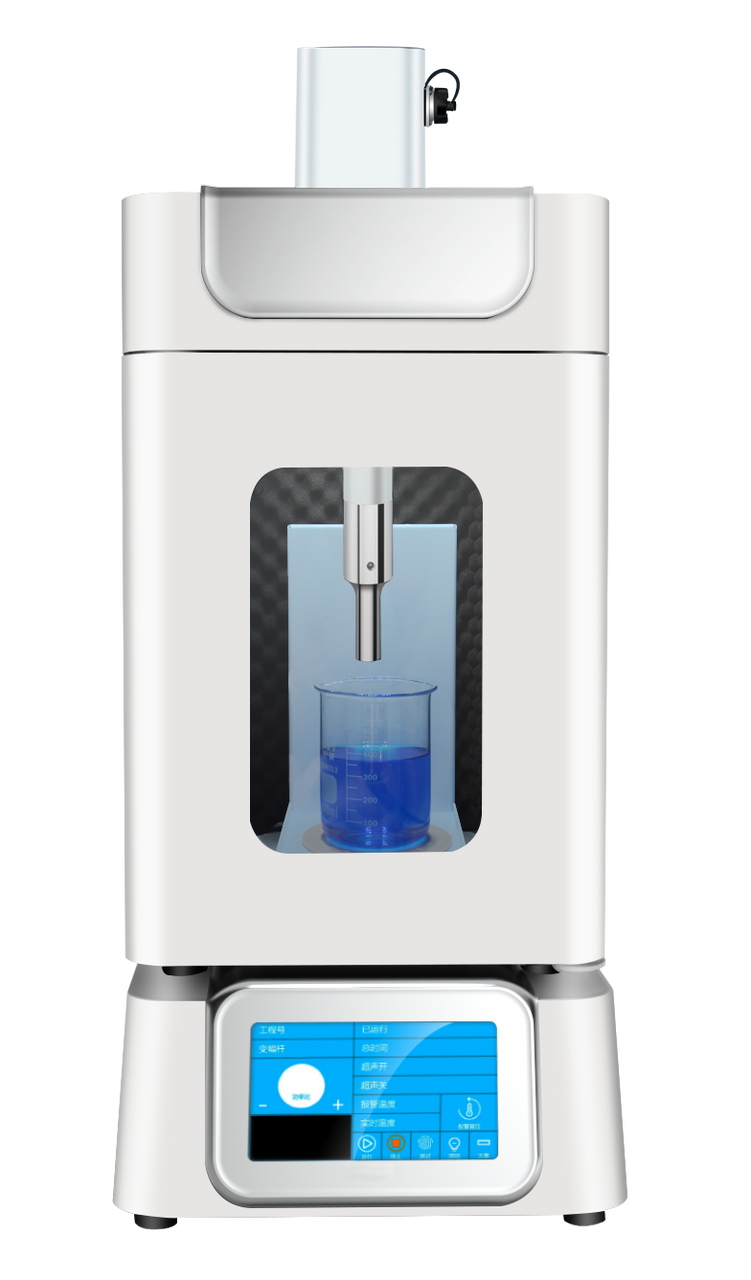

Intelligent Ultrasonic Homogenizer, Adjustable Power, 500ml, Touch Screen

Azzota Intelligent Ultrasonic Homogenizer is designed with advanced network control and remote printing functions, reflecting a modern, user-friendly design concept. To ensure maximum safety in biological environments, the system is equipped with ultraviolet sterilization, reducing the risk of operator infection and preventing cross-contamination between samples.

This versatile instrument supports a wide range of sample volumes (with interchangeable models and probes) and delivers high efficiency in:

• Cell disruption and lysis
• Emulsification and homogenization
• Sample dispersion and crushing

Widely used across life sciences, pharmaceuticals, and material chemistry, the homogenizer provides reliable performance, enhanced safety, and flexible operation for research and industrial applications.

Product Features

• High Security – Equipped with over-temperature, overload, and time alarm functions, along with user password protection, UV sterilization, and a secure door lock system.
• User-Friendly Operation – Transparent front door and built-in LED lighting for clear visibility and intuitive process monitoring.
• Smart Storage – Supports up to 20 sets of programmable operating procedures for convenient recall and reproducibility.
• Space-Saving Design – Stackable structure with an efficient up-and-down layout, helping maximize laboratory space.
• Flexible Parameters – Adjustable ultrasonic time, continuously variable power settings, and excellent operational stability.
• Electric Lift Platform – Motorized base adjustment via up/down buttons eliminates tedious manual operation.

Specifications

• Power: 6.5W - 650W adjustable
• Mixing Capacity (Optional horn): 0.1ml – 500ml
• Display: 7 inch Touch Screen
• Single ultrasonic time: 0.1s to 99.9s
• Ultrasonic Gap: : 0.1s to 99.9s
• Total working time: 1min to 99h 59m 59s
• Frequency: 20Khz to 25Khz
• Temperature Control: 0°C to 100°C (Optional low temperature thermostat)
• Alarm function: Temperature, Time, Overload, No load, Over temperature
• Optional Horns: Φ2mm, Φ3mm, Φ6mm, Φ8mm, Φ10mm, Φ12mm
• Standard Horn: Φ6mm 140mm long
• Data Storage: 20 sets
• Voltage: 110V/60Hz / (220V/50Hz available on request)
• Control mode: MCU + TFT touch
• Working voice alarm & Fault indication: Yes
• Ultrasonic Time pulse width data: Yes
• Ultrasonic Power simulation data: Yes
• Password protection function: Yes
• Ultrasonic host material: Aluminum alloy and ABS
• Soundproof box material: Aluminum alloy and ABS
• Soundproof box illuminated lamp: Yes
• Sterilization: Yes
• Remote electric lifting: Yes
• Ultrasonic generator Packing: 31 lbs 20x16x13 inch
• Soundproof box Packing: 32 lbs 15x16x23 inch
